New

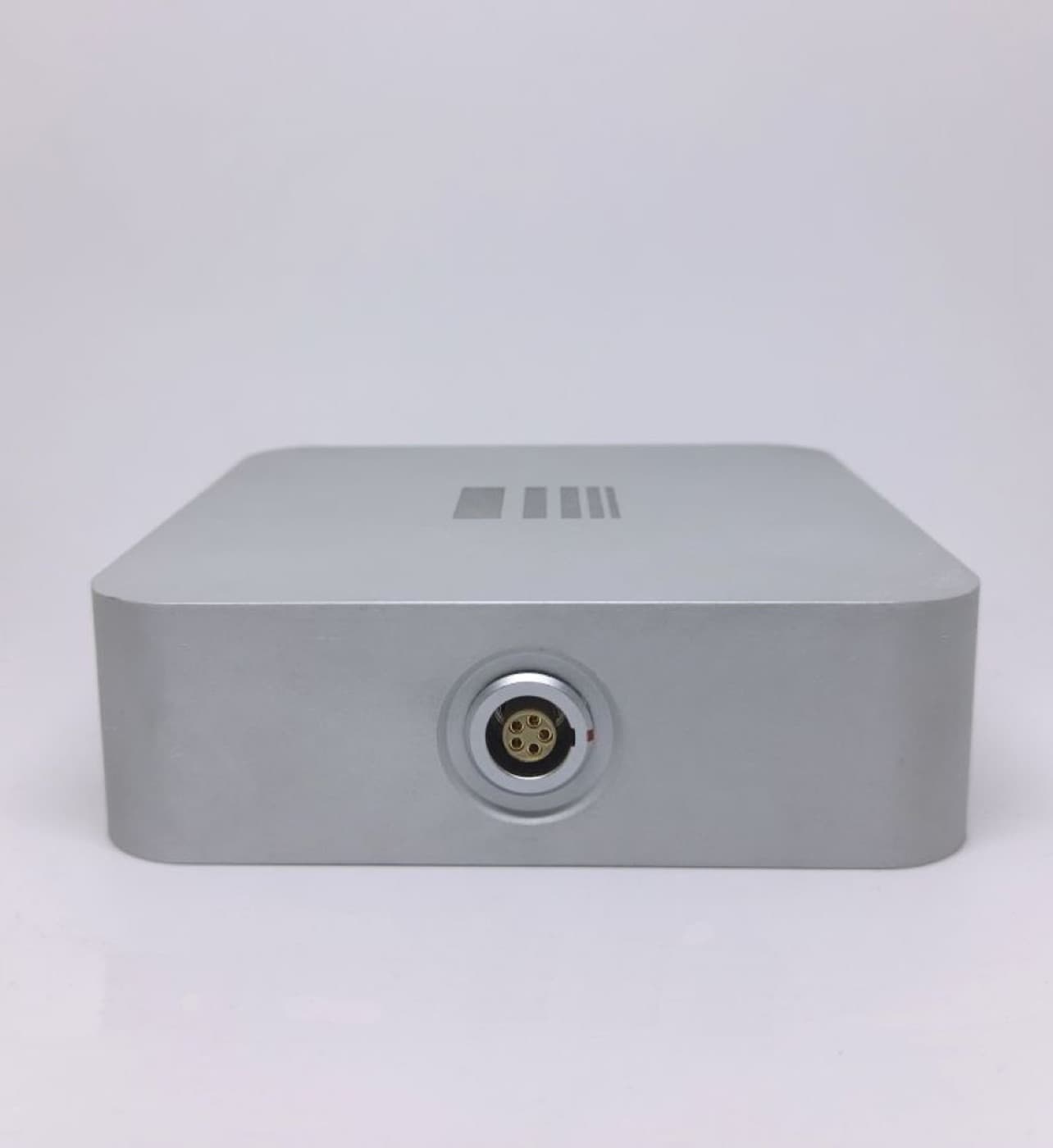

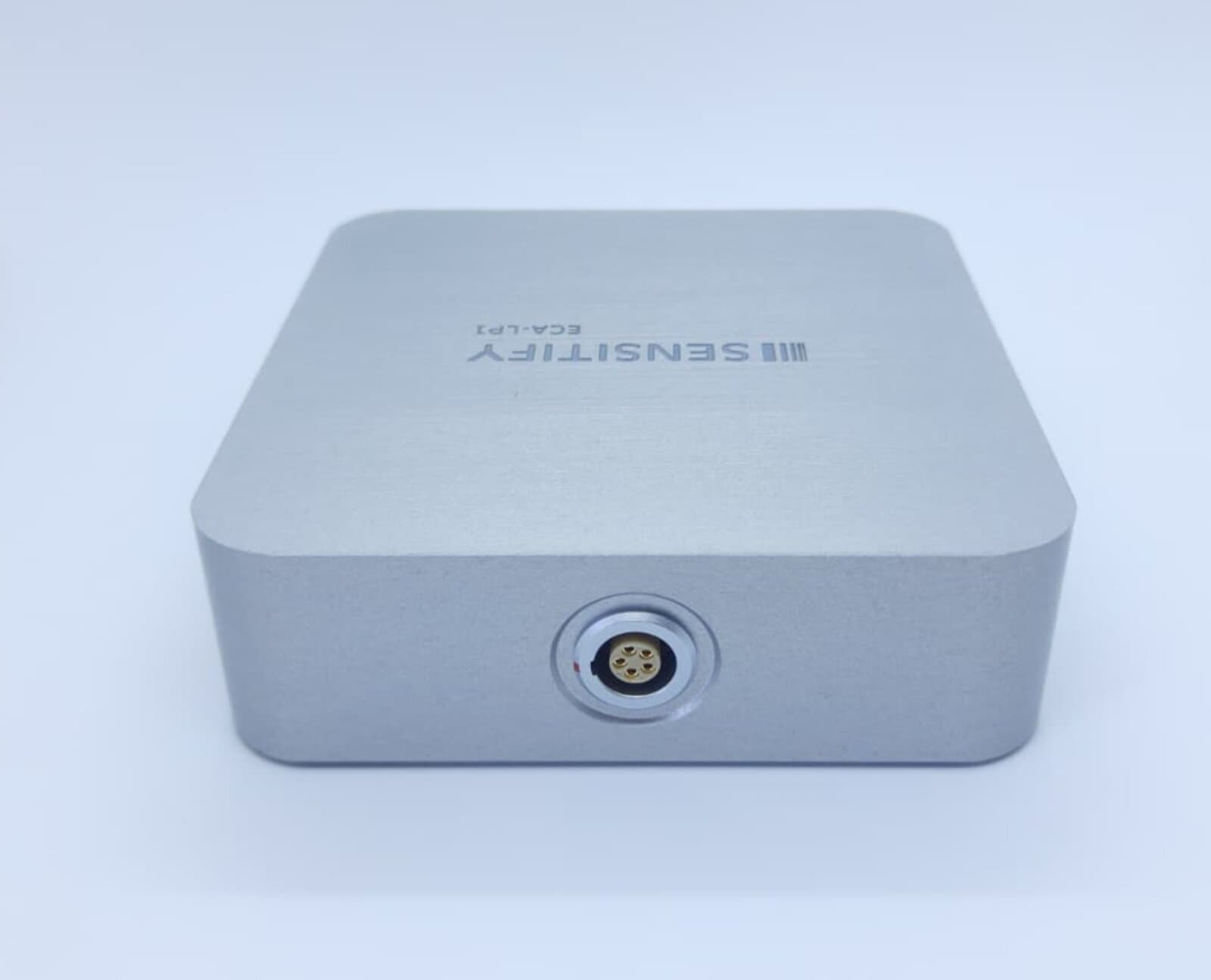

ECA-LP1
Potentiostat, galvanostat, and impedance analyser. ±5 V, 250 mA, EIS to 1 MHz. From €2,500.
Measured on an ECA
Cyclic voltammetry, 50 mM ferrocyanide
50 mM ferrocyanide on a screen-printed electrode, 100 mV/s. Recorded on an ECA-500k.
Impedance spectrum, 50 mM ferrocyanide
50 mM ferrocyanide on a screen-printed electrode, at open-circuit potential, 10 mV amplitude, 50 kHz to 1 Hz. Recorded on an ECA-500k.
Amperometry, −40 to +40 pA in 10 pA steps
Recorded on an ECA-Zero. Test currents were generated by applying controlled bias voltages across a 100 MΩ resistor; 1 mV corresponds to 10 pA. Measurement example, not an accuracy specification.
The ECA lineup
Compare allPotentiostat, galvanostat, and EIS. ±5 V, 250 mA, 1 MHz. 128 GB onboard storage.

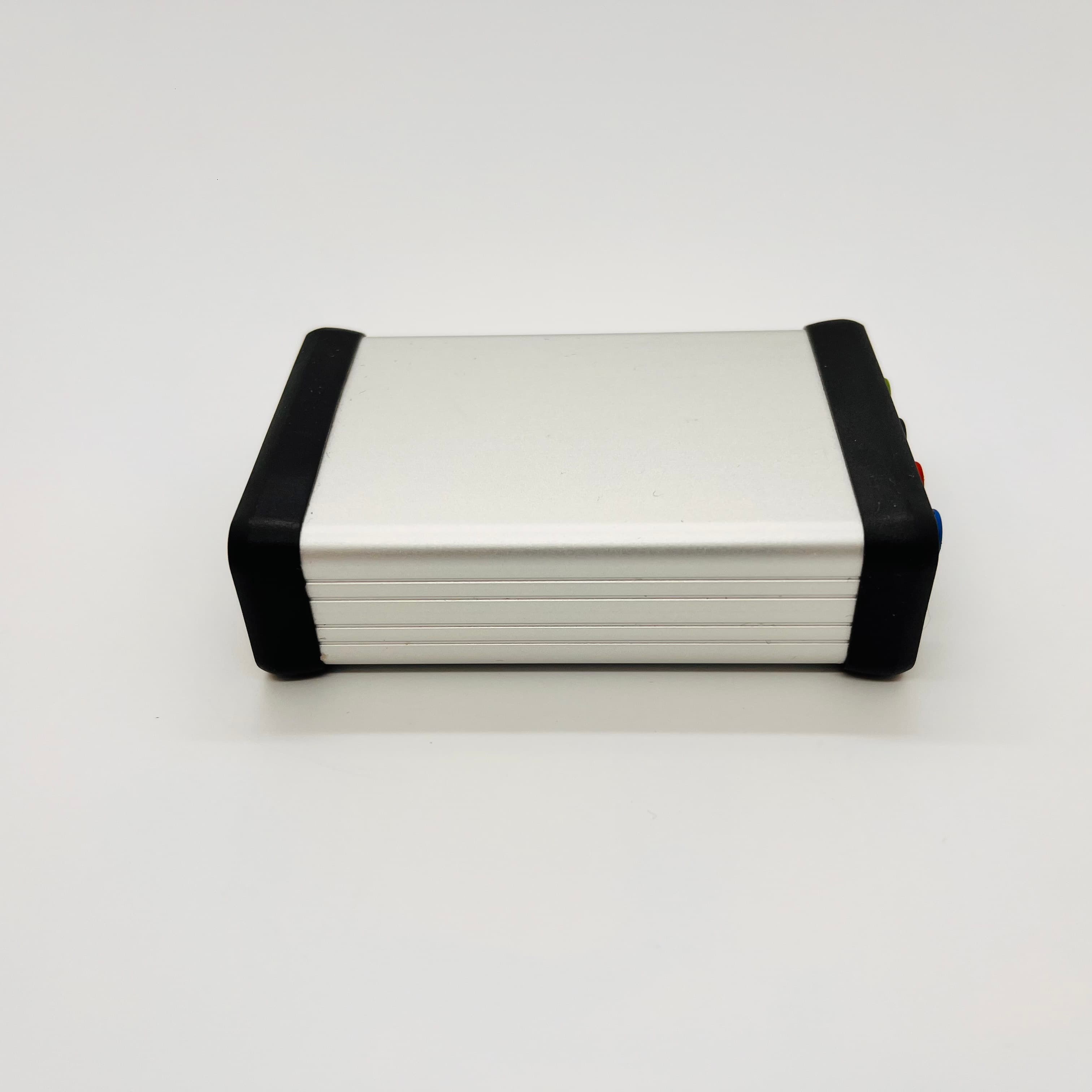

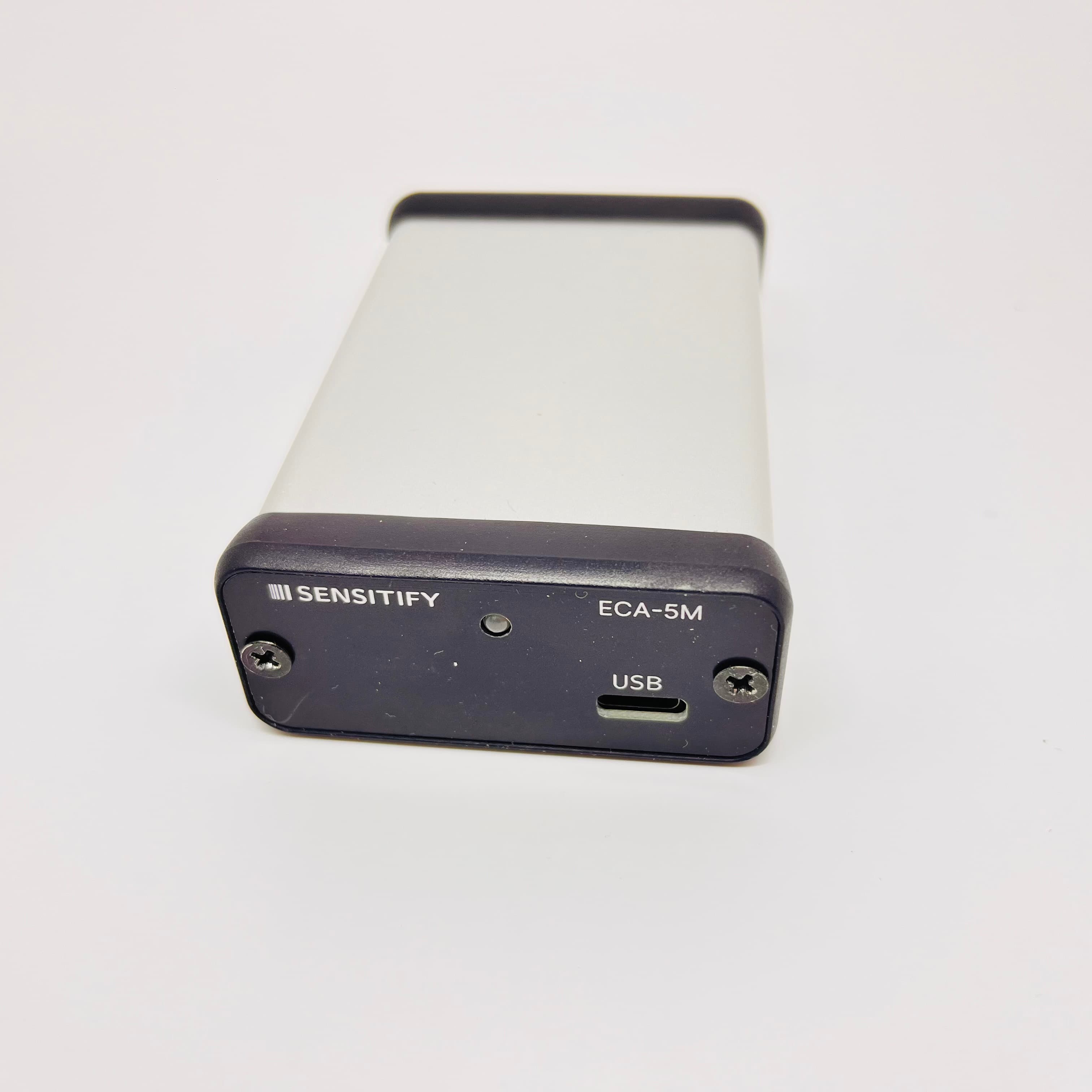

5 MHz impedance with analog lock-in. 80 MSPS DAC, 1 fF capacitance resolution.
500 kHz EIS, 25 MSPS DAC, 100 fF resolution.
Potentiostat without EIS. Same 24-bit ADC as the rest of the range. For routine voltammetry and amperometry.

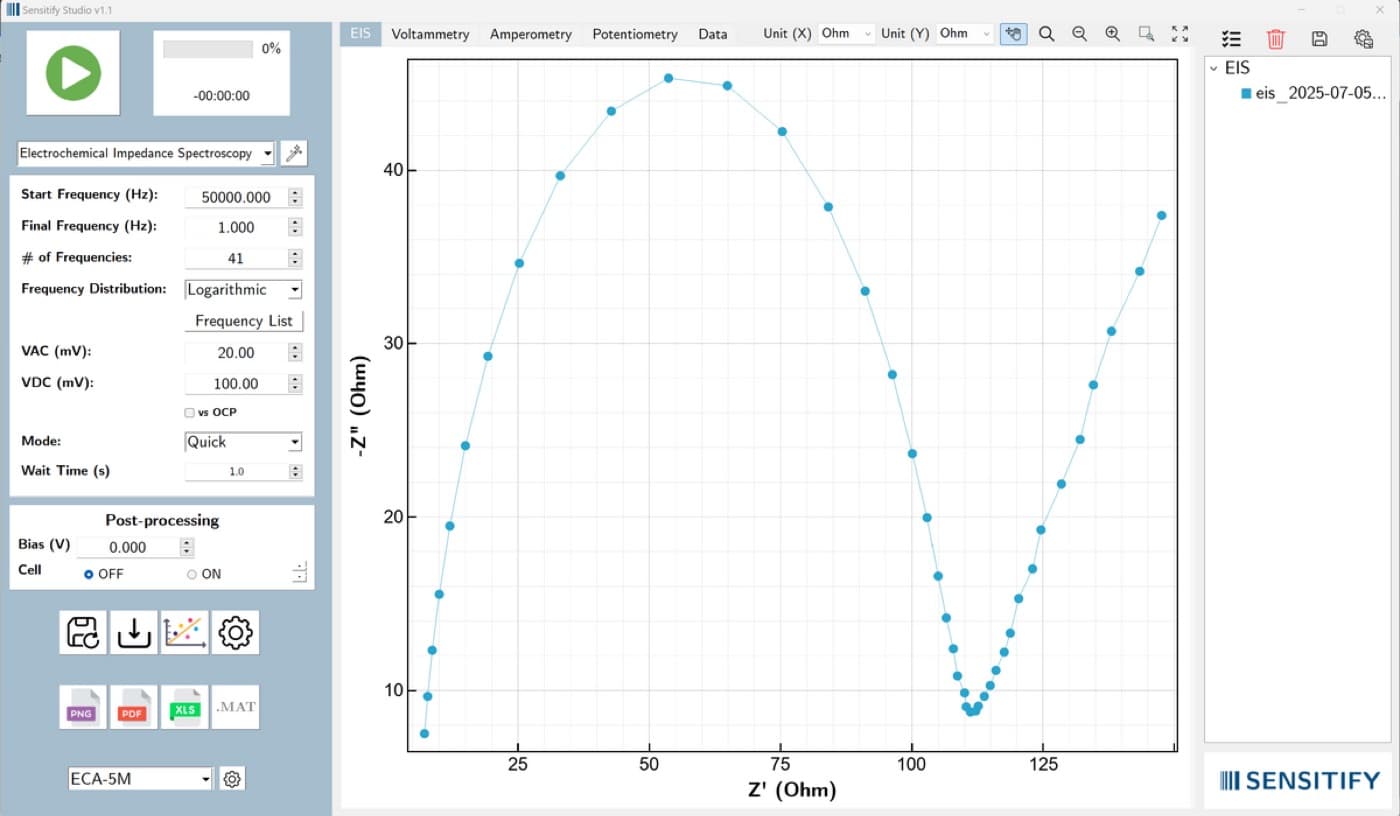

Sensitify Studio
Free for Windows and macOS. Runs CV, LSV, CA, CP, EIS, SWV, and DPV, with an experiment sequencer, circuit fitting, peak detection, and a local language model. Exports to Excel, CSV, ASCII, MATLAB, PNG, and PDF. The measurements above were recorded and plotted with it.

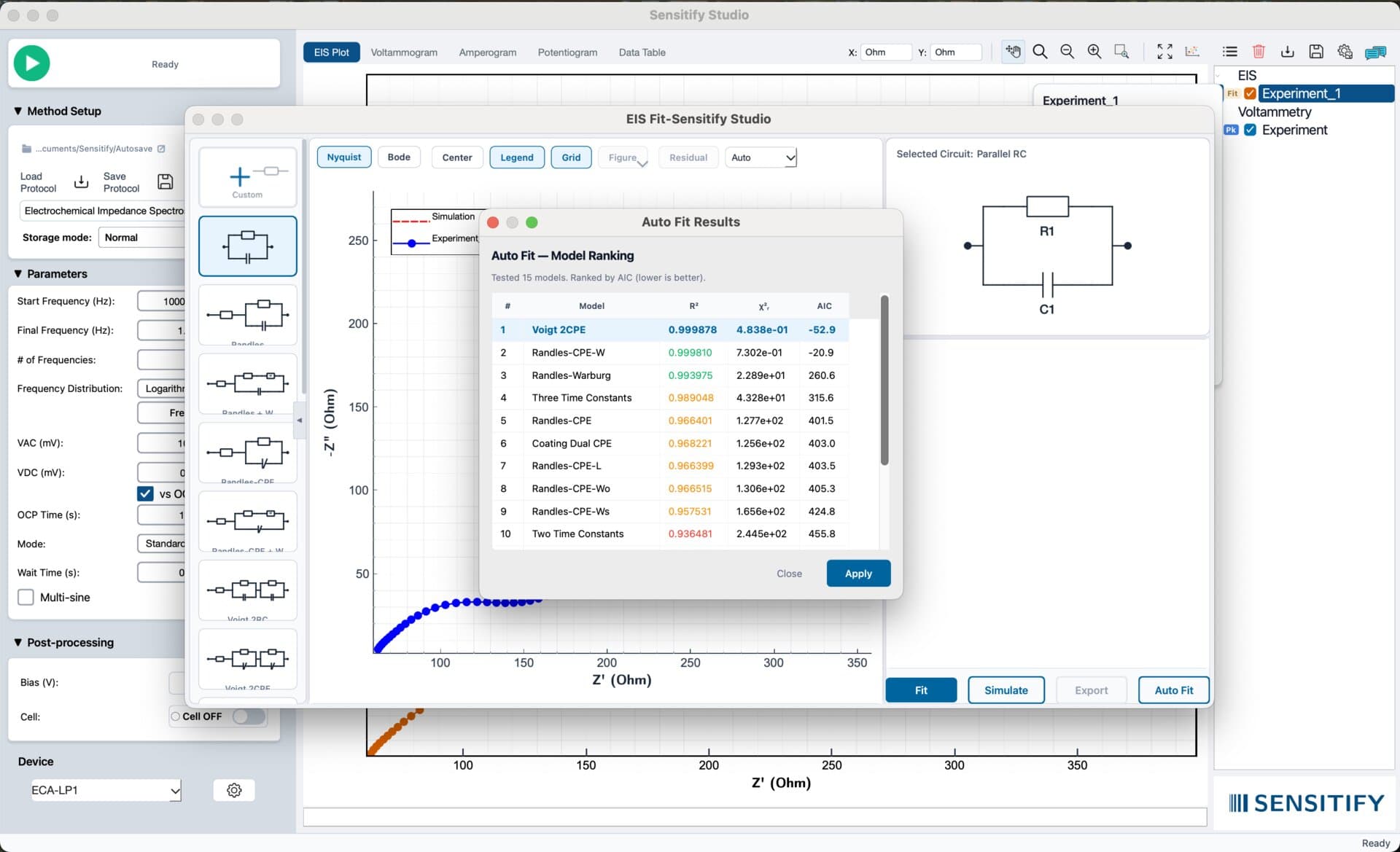

Auto Fit runs all 17 built-in equivalent circuits and ranks them by AIC, R², and χ².

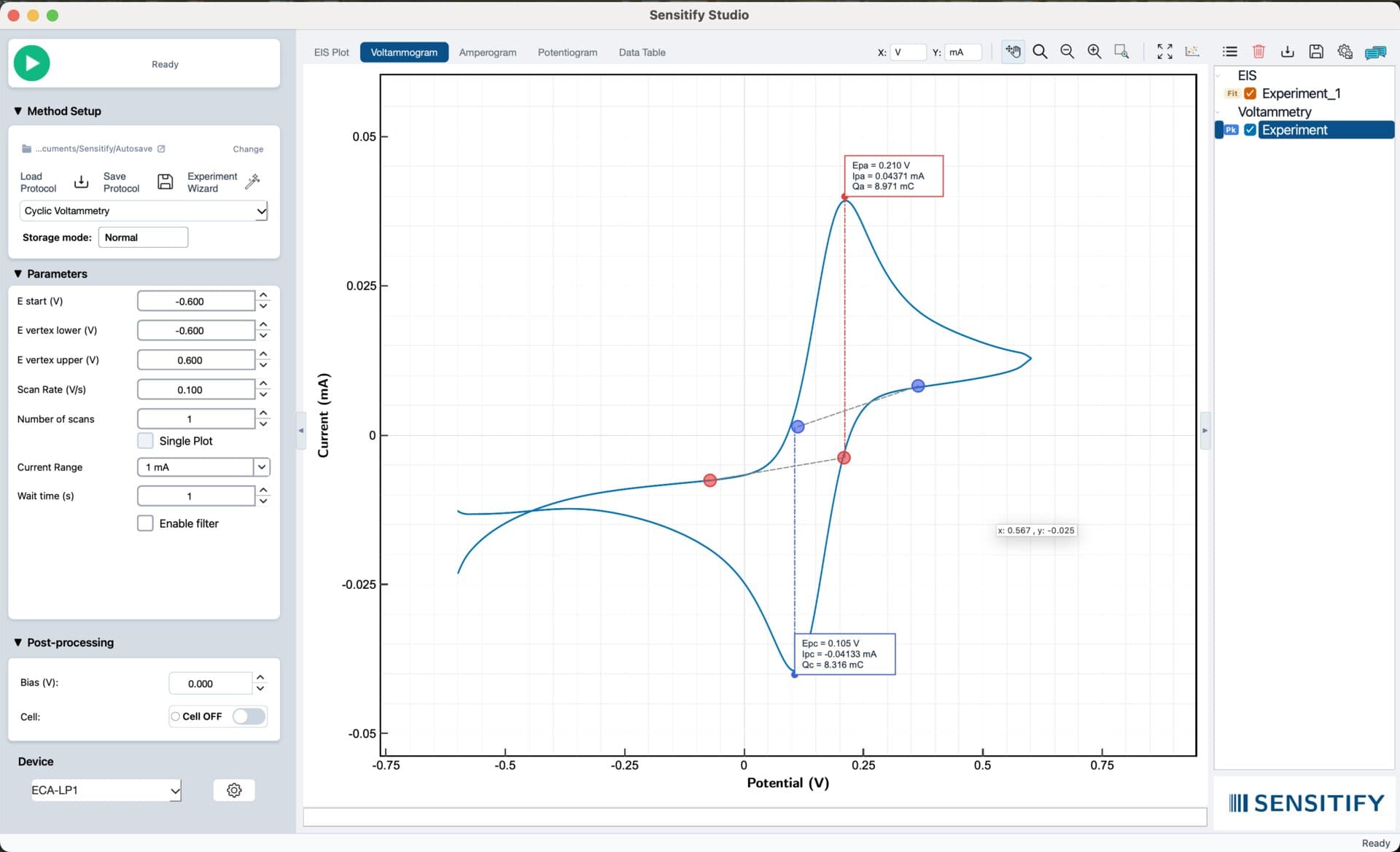

Anodic and cathodic peaks with Ep, ip, and the integrated charge. Works on CV and DPV.

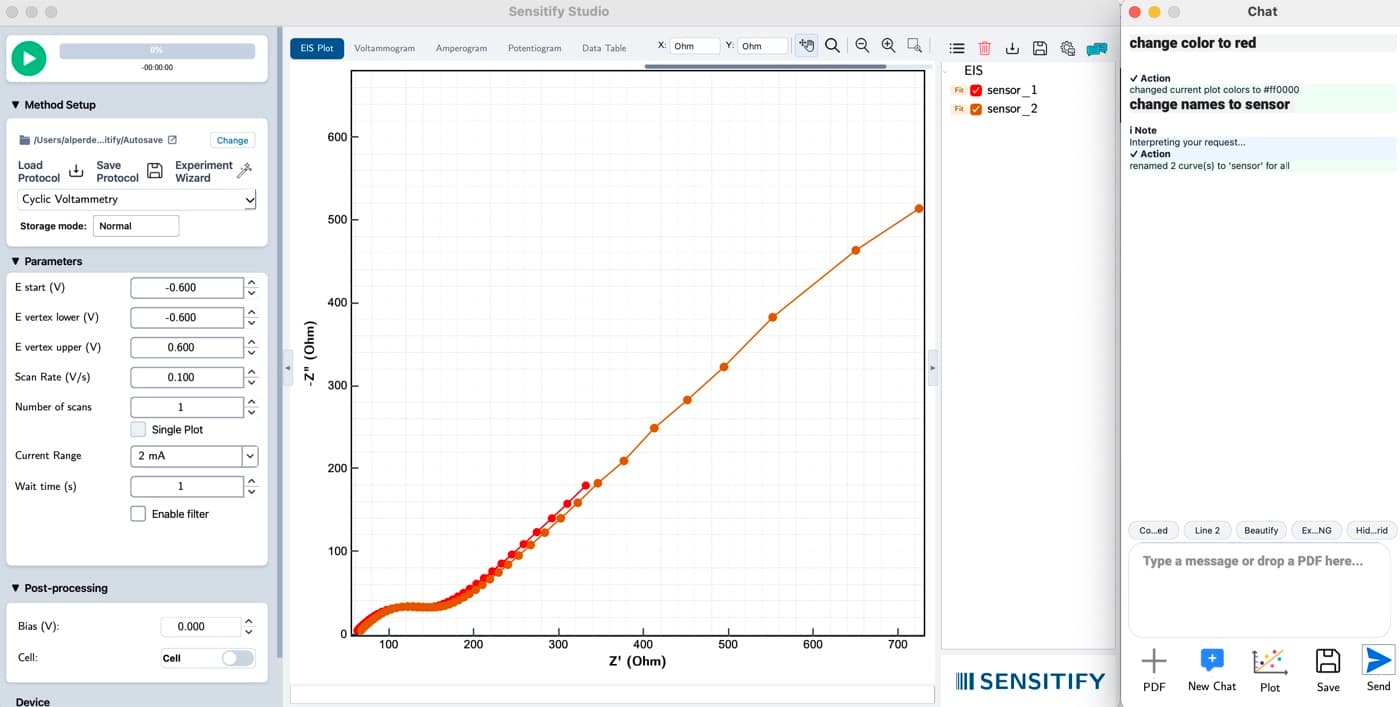

A chat panel that renames traces, recolours plots, and answers questions about your data. The model runs on your computer.
Common questions
- What is the difference between ECA-LP1 and ECA Series?
- The LP1 is a potentiostat, galvanostat, and impedance analyser with ±5 V, 250 mA, and EIS to 1 MHz. The ECA Series (5M, 500k, Zero) are potentiostats at ±2 V, 50 mA, without galvanostat mode or onboard storage. The 5M reaches 5 MHz EIS.
- What software is included?
- Sensitify Studio, free for Windows and macOS. It runs CV, LSV, CA, CP, EIS, SWV, and DPV, includes an experiment sequencer, circuit fitting, peak detection, and a local language model, and exports to Excel, CSV, ASCII, MATLAB, PNG, and PDF.
- What electrochemical techniques are supported?
- CV, LSV, CA, CP, EIS, SWV, and DPV. New techniques are added through firmware updates, which you install over USB from Studio.
- Can I run several instruments from one PC?
- Yes. Each instrument runs in its own session window. A long EIS sweep on one does not block a CV on another.
- Do you ship internationally?
- Yes. Lead time is 2 to 3 weeks. Customs and duties are paid by the recipient.
- Do you offer on-site installation and training?
- Yes. For customers in the EU and Türkiye we come to your lab, set up the instrument, and train your team on the device and the software. Remote setup over a video call is available everywhere.
- Do you offer academic pricing?
- Yes. Write us with your institution and group size.
- Can I get an online demo?
- Yes. Write us and we will demonstrate the instrument and Sensitify Studio over a video call.
